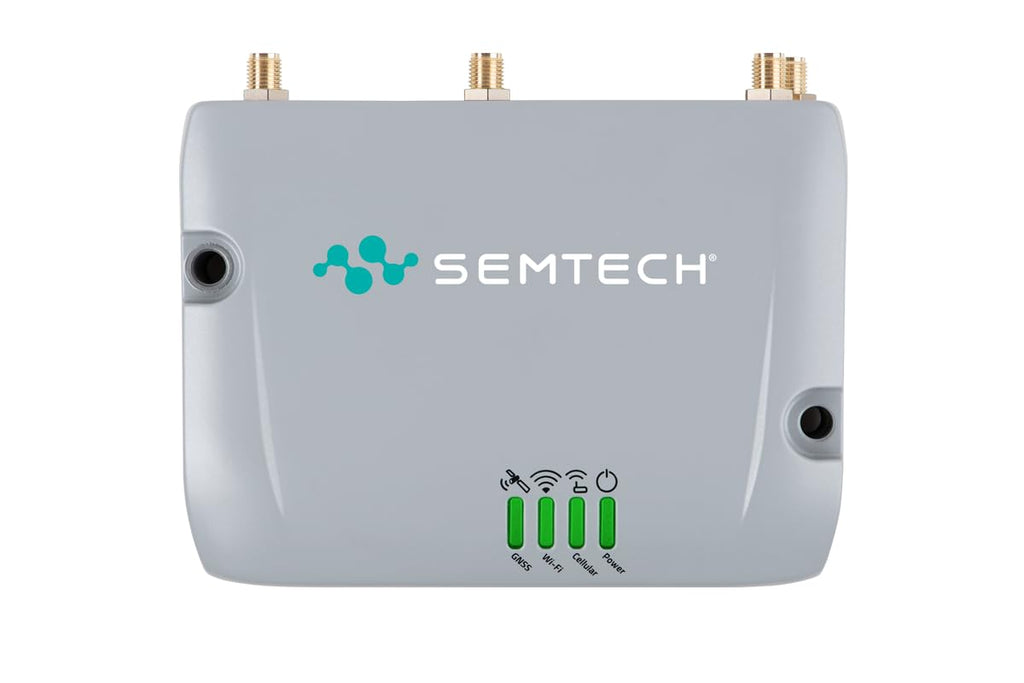

Semtech AirLink EX400 5G Redcap IoT Router, LTE Cat‑4, Dual Ethernet, Ultra‑Low Power, Semi‑Rugged Industrial Gateway, Wi-Fi 6, 1 Year AirLink Complete -1105303
Sale price
$150.50
Regular price $752.50
Skip to product information
Semtech AirLink EX400 5G Redcap IoT Router, LTE Cat‑4, Dual Ethernet, Ultra‑Low Power, Semi‑Rugged Industrial Gateway, Wi-Fi 6, 1 Year AirLink Complete -1105303
Sale price
$150.50
Regular price $752.50
| Model Name | EX400 With Wi-Fi |
| Special Feature | The EX400 USB-C is data only – (no power delivery), The EX400 requires two compatible 5G antennas with 2 elements (vs 5G eMBB with 4 elements)., The EX400 uses nano-SIM (4FF) carrier SIM cards.The EX400 USB-C is data only – (no power delivery), The EX400 requires two compatible 5G antennas with 2 elements (vs 5G eMBB with 4 elements)., The EX400 uses nano-SIM (4FF) carrier SIM car… See more |
| Frequency Band Class | Dual-Band |
| Wireless Communication Standard | 802.11ax |
| Compatible Devices | Universal |
| Recommended Uses For Product | Digital Signage Smart Machines Manufacturing Smart Agriculture |
| Included Components | EX400, DC Power Cable, Quick Start Guide, AirLink Complete Leaflet |
| Connectivity Technology | 5G, Ethernet, LTE, USB-C, Wi-Fi 6 |
| Item Weight | 1.5 pounds |

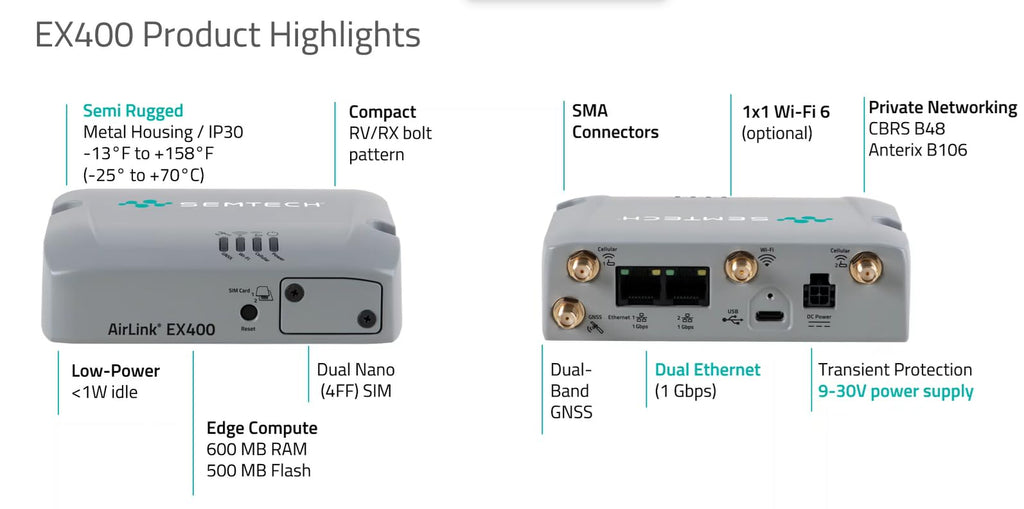

- Ultra-Low Power & Semi-Rugged: Idle power as low as 840 mW, perfect for solar or battery-powered deployments; compact, semi-rugged design with 2 antenna elements.
- Versatile Networking Options: Dual-Ethernet, and USB-C support advanced networking and edge computing.
- Easy Deployment & Management: Same footprint as AirLink RV series for seamless 5G upgrades, plus AirLink Complete and on-premise management options for simplified operation.
- 2x2 5G RedCap LTE Cat-4 Dual-Band GNSS Dual Ethernet (1 Gbps) IP30 Rated Powered by AirLink OS and AirLink Complete
- PowerConsumption: Idle Power: 840 mW (70 mA @ 12VDC) - single Ethernet enabled / Standby Mode Power: 24 mW *- 10% (2 mA @ 12 VDC) / Triggered on low voltage, I/O or periodic timer
- Operating Temperature; -25°C to +70°C / -13°F to +158°F // Storage Temperature: -40°C to +85°C / -40°F to +185°F // Humidity 95% RH @ 60°C // IP Rating: IP30
- Regulatory FCC, IC/ISED, PTCRB, GCF Planned: CE, RED, RCM / Carrier AT&T, Verizon Planned: T-Mobile, Telus, Rogers, Bell, Telstra / Public Safety FirstNet Capable /Other Anterix Active (Band 106)
